Description

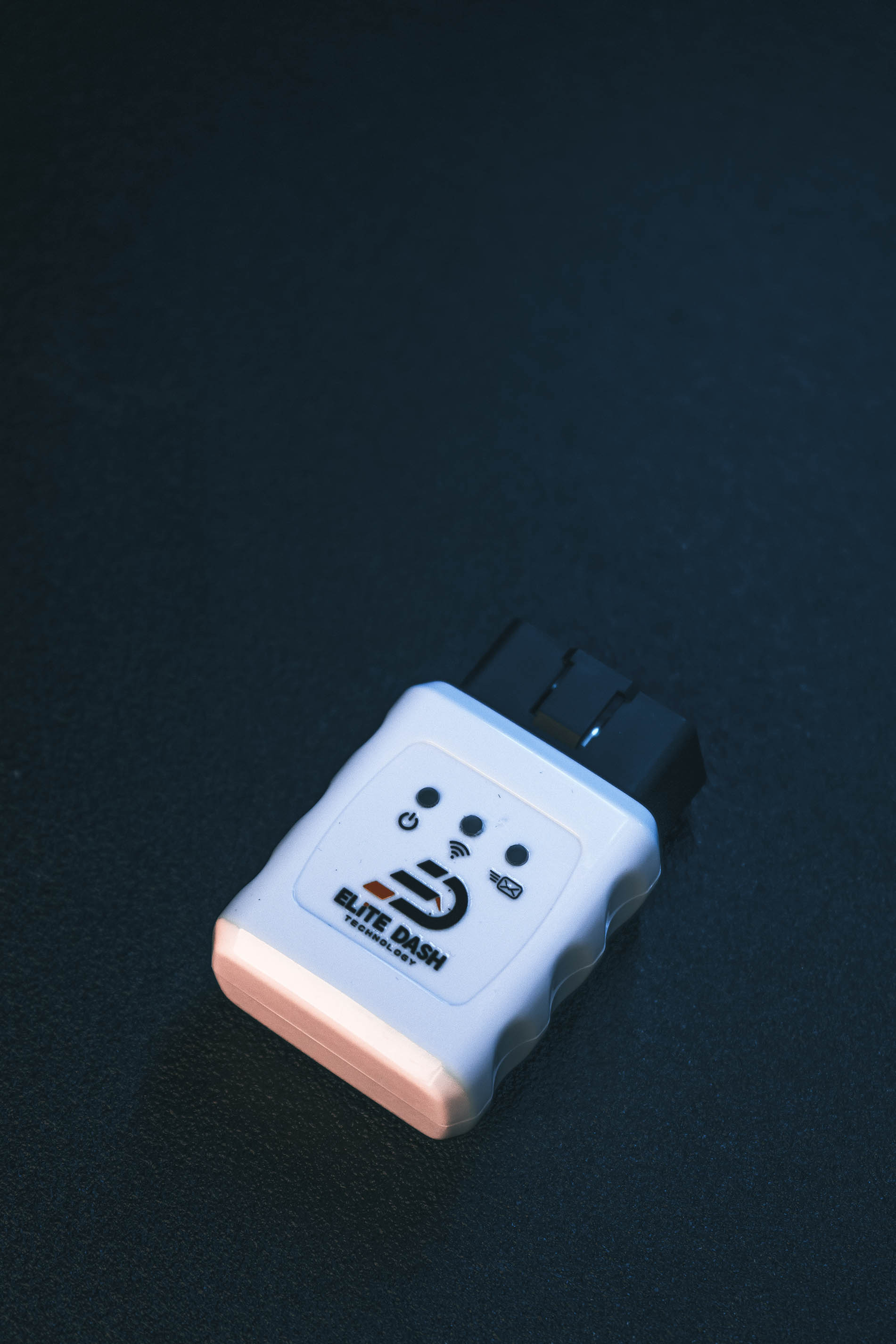

Connect your vehicle’s OBD-II system to the Elite Dash application with the ED OBD2 Adapter, a compact wireless interface powered by the ESP32-C3 platform. Designed for WiFi, Bluetooth Low Energy, and CAN communication, it creates a flexible connection for compatible vehicle data and system configuration.

The adapter supports CAN 2.0A and CAN 2.0B at speeds of up to 1 Mbps. Built-in WiFi can operate in access point or station mode, while TCP and UDP support provide flexible network communication. WiFi and CAN settings can be managed through a convenient web interface without requiring a separate configuration device.

Key Features

• OBD-II to WiFi, Bluetooth Low Energy, and CAN interface
• Designed to connect with the Elite Dash application
• Powered by the ESP32-C3 platform
• Supports CAN 2.0A and CAN 2.0B
• CAN data rate of up to 1 Mbps
• Supports TCP and UDP communication
• WiFi access point mode
• WiFi station mode
• Web-based WiFi and CAN configuration
• Integrated sleep mode
• Battery alert function
• Compact plug-in design
• Status indicators for quick system checks
• Suitable for diagnostics, configuration, and supported vehicle-data applications

Technical Specifications

• Vehicle connection: OBD-II
• Wireless connectivity: WiFi and Bluetooth Low Energy
• CAN protocols: CAN 2.0A/B
• Maximum CAN speed: 1 Mbps
• Network protocols: TCP and UDP
• WiFi modes: Access point and station
• Configuration: Web interface
• Processor platform: ESP32-C3

Upgrade your vehicle connectivity with the Elite Dash ED OBD2 Adapter. Its combination of OBD-II, CAN, WiFi, and Bluetooth communication provides a powerful and convenient solution for connecting supported vehicle systems to the Elite Dash application.

Available data and functions depend on the vehicle, ECU, OBD-II protocol, application version, firmware, and system configuration. Please confirm compatibility before ordering.
